Snap-lock vs mechanical lock standing seam comes down to how the seam closes. Snap-lock panels press together by hand, while mechanical lock seams are folded shut on the roof with a seaming tool. In short, order our 1.75-inch snap-lock for most roofs at 3:12 and steeper, and our 1.5-inch mechanical lock for low slopes down to 1/2:12, heavy snow, long runs, copper and zinc.
This guide is for roofers, contractors and homeowners choosing panels for their installer. Architectural Metal Panels fabricates both systems as standing seam roof panels in our New Brunswick shop, cut to the lengths on your order. Your roofer installs them, so the right choice also depends on the tools and experience they bring.
How do snap-lock and mechanical lock seams differ?

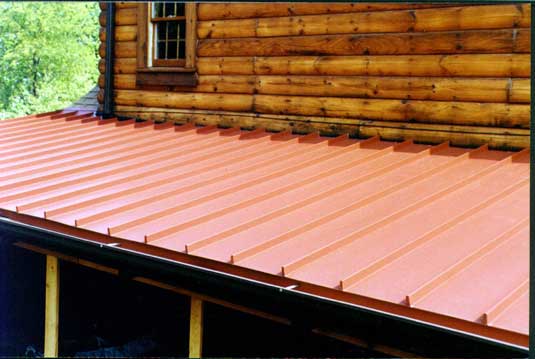

A snap-lock seam is closed by pressing one panel’s leg over the next until it locks. A mechanical lock seam is closed by folding the legs together with a hand seamer or a seaming machine.
Snap-lock goes on faster and needs no seaming tool, which is why it is common on houses. The fastening sits hidden under the seams, so no fastener passes through the panel face.
Mechanical lock takes an extra step. After the panels are set, the installer runs a seamer along each seam and folds it to 90 or 180 degrees. The folded seam grips tighter than a snapped one, which matters on low slopes and under snow and ice.
Which seam heights can you order?
We run seams 1 inch, 1.5 inches, 1.75 inches and 2 inches tall. Most orders use the 1.75-inch snap-lock or the 1.5-inch mechanical lock.
A taller seam lifts the joint higher above the water running down the pan, and it casts a bolder shadow line. A 1-inch seam gives a quieter, lower line that suits small roofs, porches and bays. Taller 2-inch seams are often chosen for low slopes and larger commercial roofs. Name the seam height on your order; the written quote confirms the profile we will run.
What minimum slope does each system need?
Our 1.75-inch snap-lock is typically used at 3:12 and steeper. Our 1.5-inch mechanical lock typically goes down to 1/2:12 over a solid deck.
The model residential code allows standing seam roofs as low as 1/4:12, but that is a floor, not a promise for every profile. Each profile’s installation instructions set its own minimum, and those govern. Below 3:12, order mechanical lock. That often covers porch roofs, shed dormers, low additions and many commercial metal roofs.
90-degree or 180-degree seam: which do you need?

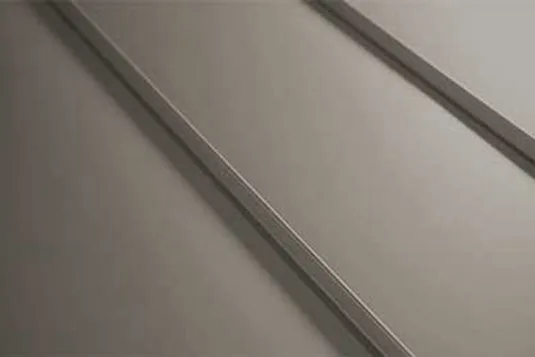

A 90-degree seam, often called single lock, is folded once. A 180-degree seam, or double lock, is folded twice, and it holds tighter against wind-driven water.
On the lowest slopes, installers usually fold to 180 degrees, following the profile’s installation instructions. On steeper roofs a 90-degree fold is common and quicker. On most mechanical lock profiles the same panel can be folded either way, because the fold is made on the roof. Note the seam you want on the order, so the quote and your installer’s seamer match.
How does snow change the choice?
Where snow piles up, mechanical lock is the safer pick. In Sheffield Metals’ guidance on steep-slope roofing, snap-lock seams are described as more likely to pull apart when built-up snow and ice shift with temperature swings. For snowy regions, the same guidance points to mechanically seamed panels.
In New Jersey that matters most on long, shaded or north-facing slopes, and on roofs in the colder hill country of the northwest. Snow can also slide off any metal roof; our guide to snow guards for metal roofs covers where to hold it. If guards are planned, say so when you order, so the seam profile suits the clamps.
Which metals and gauges come in each profile?
Snap-lock covers painted steel and aluminum, and mechanical lock adds copper and zinc. The table lists what we run in each.
| Item | 1.75-inch snap-lock | 1.5-inch mechanical lock |
|---|---|---|
| How the seam closes | Snaps together by hand | Folded to 90 or 180 degrees with a seamer |
| Panel width | 12 to 18 inches | 12 to 20 inches |
| Steel | Galvalume, 26, 24 or 22 gauge | Galvalume, 26 or 24 gauge |
| Aluminum | .032 or .040 inch | .032 inch |
| Copper and zinc | 16 oz copper; 0.7 or 0.8 mm zinc | 16 oz copper; 0.7 or 0.8 mm zinc |
| Typical minimum slope | 3:12 | 1/2:12 over a solid deck |
| Seaming tool | Not needed | Needed |
| Typical fit | Steep house roofs | Low slopes, snow, long runs, copper and zinc |
Painted steel and aluminum come in PVDF (Kynar 500 type) or SMP finishes. Copper and zinc are natural metals and are not painted.
Which should you order?
Order snap-lock for a steep, ordinary house roof. Order mechanical lock whenever slope, snow, panel width or metal points past what snap-lock is made for.
- Roof at 3:12 or steeper, painted steel or aluminum: 1.75-inch snap-lock.
- Roof below 3:12, down to 1/2:12 over a solid deck: 1.5-inch mechanical lock.
- Copper or zinc: 1.5-inch mechanical lock; see 16 oz copper and zinc sheet explained.
- Heavy snow, long panel runs or exposed sites: mechanical lock, folded as the instructions require.
- Panels wider than 18 inches, up to 20: mechanical lock.
- 22 gauge steel or .040 inch aluminum: snap-lock, if the slope suits it.
- Installer without a seamer: snap-lock, as long as slope and snow allow it.
Standing seam panels are typically ready 1-2 days after you approve the quote. To order, follow our guide on how to send a cut list for metal roof panels, then send it for a written quote within 24-48 hours.
Snap-lock and mechanical lock questions
Is mechanical lock better than snap-lock?
Not always. Mechanical lock is stronger on low slopes and under snow and ice because the seam is folded shut. Snap-lock is quicker to install and needs no seaming tool, which makes it a sound choice for steep house roofs.
What is the minimum slope for snap-lock standing seam?
Our 1.75-inch snap-lock is typically used at 3:12 and steeper. Below that, order our 1.5-inch mechanical lock, which typically goes down to 1/2:12 over a solid deck. The profile’s installation instructions govern.
Does mechanical lock need special tools?
Yes. The seams are folded on the roof with a hand seamer or a seaming machine, to 90 or 180 degrees. Snap-lock panels close by hand and need no seaming tool.
Which standing seam profile do you make in copper and zinc?
Our copper and zinc standing seam is the 1.5-inch mechanical lock, in copper (mostly 16 oz) or zinc (0.7 or 0.8 mm), 12 to 20 inches wide. Painted Galvalume steel and aluminum come in both profiles.
Single lock or double lock for a low-slope roof?
Double lock, folded to 180 degrees, is the usual choice for the lowest slopes because it holds tighter against water. Follow the profile’s installation instructions for the slope on your roof.
